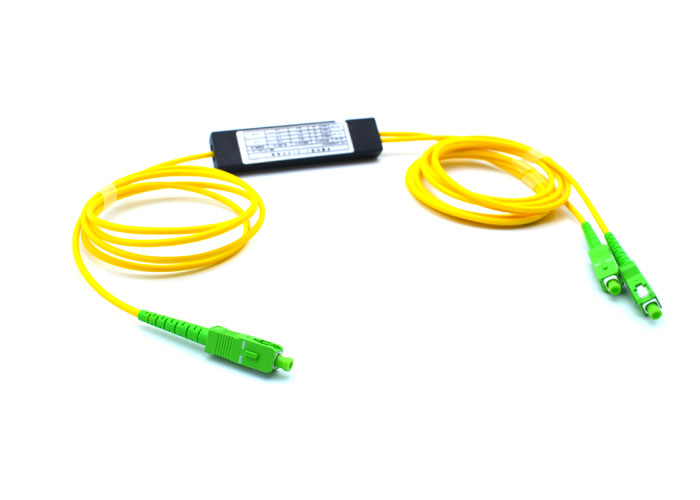

Dual Window SC APC Fiber Optic Coupler Splitter ABS Box 1*2 FBT Coupler Splitters

Brand Name : CFO

Model Number : 1*2 FBT coupler/splitter

Certification : CE Rohs

Place of Origin : China

MOQ : 10pcs

Payment Terms : T/T, Western Union, MoneyGram, paypal

Supply Ability : 5000pcs/day

Packaging Details : 1pc in blister box

Color : Fiber Optic Coupler Splitter

Coupling Ration : 50/50

Connector : SC/APC

Wavelenght : 1310nm

Fiber lenght : one meter

Contact Now

1310/1550nm Dual Window 50/50 Ratio SC/APC ABS Box Type 1x2 FBT Coupler 1*2 FBT FIber Optic Splitter

Carefiber can supply various FBT couplers including 1x2, 1x3,1x4,1x8,1x16,1x32 and customerized products.

Description Of Fiber Optic PLC Splitter

PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

1. Features:

- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Stability Telcordia GR-1221 and GR-1209
- High Reliability and Stability

2. Applications:

Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

3. Parameter:

Table-1

Parameter		1x2
Operating Wavelength (nm)		1310/1550
Operating bandwidth (nm)		±40
Grade		P	A
Insert Loss (dB) Coupling ratio:	1/99	≤22.5/0.25	≤23.5/0.35
	2/98	≤18.8/0.3	≤19.5/0.4
	3/97	≤17.0/0.35	≤17.8/0.45
	5/95	≤14.6/0.4	≤15.5/0.5
	10/90	≤11.2/0.75	≤12.0/0.8
	20/80	≤7.9/1.3	≤8.4/1.4
	30/70	≤6.0/1.9	≤6.3/2.1
	40/60	≤4.7/2.7	≤4.9/2.9
	50/50	≤3.6	≤3.8
Excess Loss(dB)		0.07	0.1
PDL(dB)		≤0.15	≤0.20
Return Loss(dB)		>50
Directivity(dB)		≥55
Operating Temperature(ºC)		-40~85
Storage Temperature(ºC)		-40~85
Connector		SC, FC, LC or customerized

Notes: The values are all tested at +23ºC without connectors.

Table-2

Configuration	1×2	1×3	1×4	1×8	1×16	1x32
Center Wavelength (nm)	1310, 1490, 1550
Operating Wavelength (nm)	±40
Insert Loss	Please refer to the coupling ratio
Typical Excess Loss	0.08	0.15	0.3	0.45	0.6	0.75
Return Loss	≥55

Notes: The values are all tested at +23ºC without connectors.

4. Advantages Of Fiber Optic Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃
