Ftth terminal box 144FO optical distribution box for indoor outdoor enclosure
This type fiber access termination box(FDB) is able to hold up to subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, and cable connection in one solid protection box.
Features:
1. It suitable for outdoor and made of high-quality plastic.
2. ApplkaNe for the FTTx project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.
3. Rated to IP55, suitable for Indoor or outdoor application.
4. Wall mounting and pole mounting application.
5. 2pcs cable entry ports; cable can be entry without cutting.
6. 6pcs exit ports for FTTH drop cable.
| Part No. | Spec. |
| Dimension | 296x245x97 mm |
| Entry ports and cable dia. (max.) | 2xØ22mm |
| Output ports and cable dia, (max.) | 4xØ11mm |
| Output ports and cable dia. (max.) | 8xØ10mm |
| Splice capacity | 144FO |

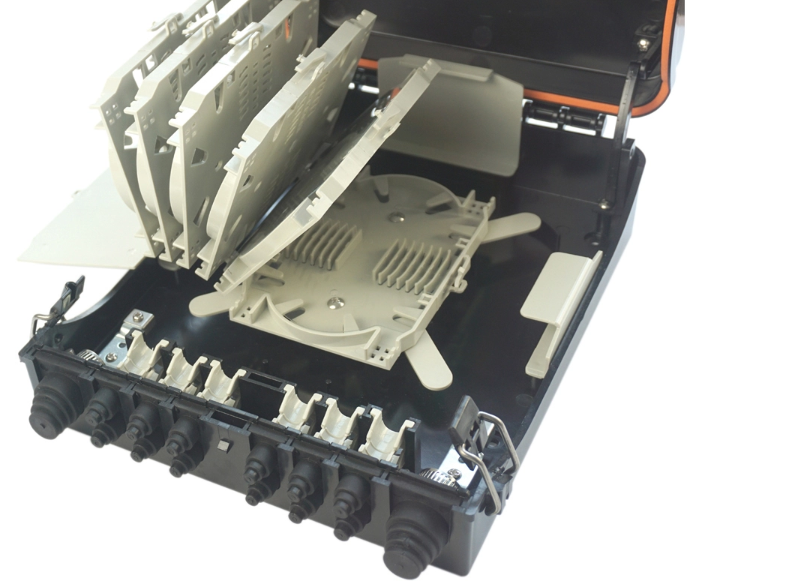

| Max. number of splice tray | 6 |
| Splice capacity of each tray | 12/24FO |
| Mounting type | Wall-mounting or pole-mounting |
| Lock type | 2 Side locks (Hasp lock) 1 Standard key lock (Optional) |
Carefiber always focuses on reliable quality development. By complying with our quality policy"Continue to pursue excellent quality, offer the best products and services in order to realize customer needs and satisfaction", all along we strive for providing exceelent products and service to meet and exceed our cusotmer's need. Carefiber constantly works with modern quality management methods to ensure the whole service procedure in implemented flexibly and efficiently.
Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.
