ADSS Optical Fiber Cable All Dielectric Self Supporting Aerial With 100m 200m Span

Name: ADSS Optical Fiber Cable All Dielectric Self Supporting Aerial With 100m 200m Span
Brand: carefiber
Price: 1 USD

China ADSS Optical Fiber Cable All Dielectric Self Supporting Aerial With 100m 200m Span wholesale

Brand Name : carefiber

Model Number : ADSS-DJ-200M

Certification : ISO9001

Place of Origin : China

MOQ : 1km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000Km/week

Packaging Details : 1km/drum

Cable Structure : ADSS

fiber Options : ITU G652D ,G657A,OM1,OM2

Fiber Count : 2-288 Cores

Installation tension : 8000N

Span : 80m to 500m

Strength member : Kevlar yarn

Material of jacket : black polyethylene(PE)

Brand name : Carefiber

Warranty(year) : 2

Contact Now

All-Dielectric self-supporting aerial ADSS fiber optic cable ADSS CABLE with 100m 200m span

ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.

Features:

Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.

Applications:

Aerial

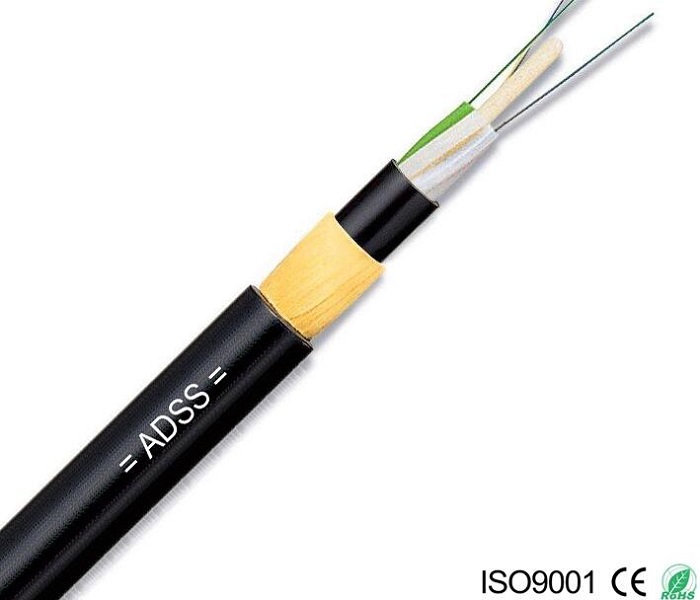

ADSS Optical Fiber Cable All Dielectric Self Supporting Aerial With 100m 200m Span

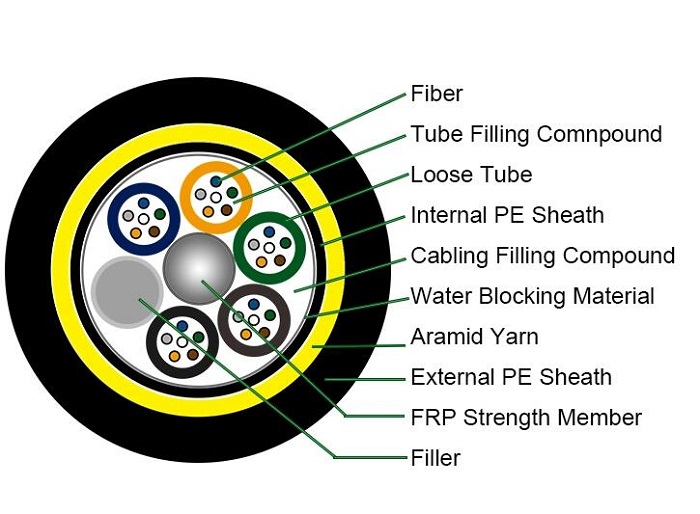

Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
11	110	120	1.0	2.5	8	3.0	6.6	2.1	120	80	100	80
11.5	115	125	1.5	4	10	4.5	7.3	1.8	180	120	150	120
12	120	130	2.5	6	15	7.5	8.3	1.5	250	150	290	150

Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span (NESC Standard,m)
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	60	32.2	19.1	0.1	750	530	750	510

Note: Only a part of ADSS cables are listed in the table. ADSS cables with other spans can be inquired from Carefiber directly.

Specifications in the table are got on condition that there is no height difference and the installation sag is 1 %.

Fiber count is 2 to 72. The identification of fibers complies with the national standard.

This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Carefiber Factory:

Located in Shenzhen and Guangxi, the main seaport city in China, Carefiber Optical Technology Limited is a professional manufacturer of fiber optic cables. We have more than 8 years' experience in producing communication cables and fiber optic cables. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the world.

Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed RoHS, ISO9001 and TLC certifications.

Our Principles
Full customer satisfaction
Commitment to high-quality service
Long-term cooperation and profits for each other
